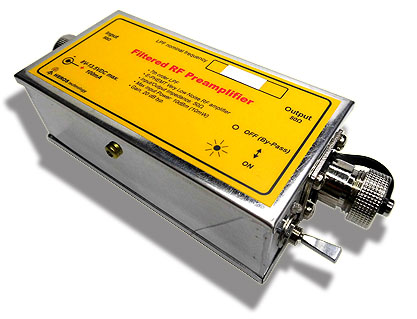

Pre-Filtered RF Preamplifier



From 300kHz to 500MHz range of eleven Pre-Filtered, Very Low Noise, High IP3 preamplifiers.

Suitable as IF Buffer for SDR radios, instrumentation and general purpose applications.

Featuring Amplifier By-Pass function when the toggle switch is set to amplifier OFF position.

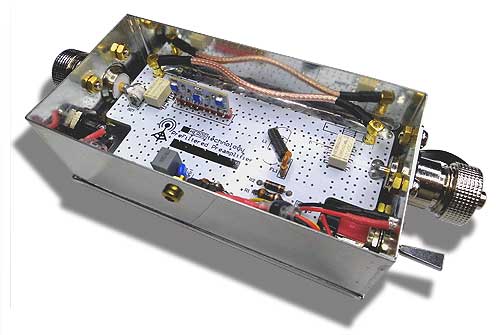

Range of high performance Pre-Filtered RF Preamplifiers incorporating a 7th order Elliptic Low Pas Filter prior a high IP3, low noise amplifier. High IP3 is an important feature denoting capability to handle strong signals without distortion.

Suitable for a wide range of purposes in applications such as IF buffer for SDRradios, signal booster for radio receivers, laboratory measurement, signal generation, local oscillator buffer, transmission driver, etc.

Featuring Amplifier By-Pass function when the toggle switch is set to amplifier OFF position.

Available Low Pass Filter frequencies to choose:

- 300kHz
- 600kHz
- 1.5MHz
- 3MHz
- 6MHz
- 15MHz
- 30MHz
- 60MHz
- 150MHz
- 300MHz
- 500MHz

Depending on the working frequency technical features are as follows:




LF-HF working frequencies preamplifier (300kHz to 30MHz)

Low Noise, High IP3 amplifier based on Mini-Circuits Gali-74+, a MMIC device manufactured using InGaP HBT technology.

- Input/Output impedance: 50 Ohms.
- Input power: 10dBm max.
- Antenna surge suppression: Gas discharge tube on Input port.
- Passive, 7th order, Elliptic Low pass filter.
- Gain: 25dB
- IP3: 38dB
- Noise figure: 2.7dB.
- High isolation, very low insertion loss set of RF signal relays.
- Power supply circuitry includes protection and EMI decoupling.

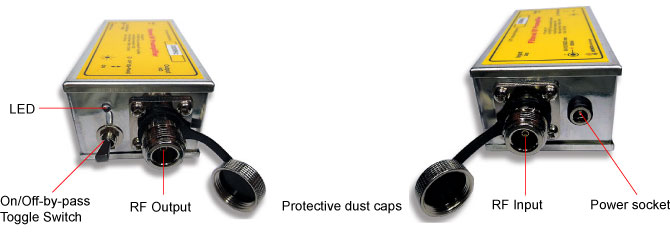

- Amplifier ON-OFF/By-pass functions switch.
- In OFF state the unit is by-passed.
- 3mm LED signaling ON state.
- Power: 11V-15V DC/120mA.
- Size: 55x111x40mm (2.16x4.37x1.57in)
- Coaxial cable tails and power cable provided.
- Connectors: BNC standard; N, SMA or combined types available.

Customize versions available Please ask.



VHF-UHF working frequencies preamplifier (60MHzHz to 500MHz)

Very Low Noise, Ultra High IP3 amplifier based on Mini-circuits PGA-103+, a MMIC device manufactured using E-PHEMT technology.

- Input/Output impedance: 50 Ohms.
- Input power: 0dBm max.
- Antenna surge suppression: Gas discharge tube on Input port.
- Passive, 7th order, Elliptic Low pass filter.
- Gain: 25dB @ 145MHz; 22dB @ 435MHz.
- IP3: 37dBm @ 60MHz; 39dBm @ 400MHz,
- Noise figure: 0.45dB @ 145MHz; 0.35dB @ 435MHz.
- High isolation, very low insertion loss, set of RF signal relays.
- Power supply circuitry includes protection and EMI decoupling.
- Amplifier ON-OFF/By-pass functions switch.
- In OFF state the unit is by-passed.
- 3mm LED signaling ON state.
- Power: 11V-15V DC/110mA.
- Size: 55x111x40mm (2.16x4.37x1.57in)
- Coaxial cable tails and power cable provided.
- Connectors: BNC standard; N, SMA or combined types available.

Customize versions available Please ask.





Diagram

LF-HF Pre-Filtered Preamplifier.
Simplify diagram.

(click to enlarge)

Diagram

VHF-UHF Pre-Filtered Preamplifier.
Simplify diagram.
(click to enlarge)





response plots 300kHz to 6MHz

LPF response plots 300kHz to 6MHz
(click to enlarge)



15MHz to 500MHz response plot

LPF response plots 15MHz to 500MHz
(click to enlarge)


  Pre-Filtered RF Preamplifier options
*Connector
   option
Model Price Order

BNC HS-74A-300K-B ; HS-74A-600K-B ; HS-74A-1M5-B ; HS-74A-3M-B ; HS-74A-6M-B ; HS-74A-15M-B ; HS-74A-30M-B ; HS-74A-60M-B ; HS-74A-150M-B ; HS-74A-300M-B ; HS-74A-500M-B £ 121.00 Order

SO239 HS-74A-300K-SO ; HS-74A-600K-SO ; HS-74A-1M5-SO ; HS-74A-3M-SO ; HS-74A-6M-SO ; HS-74A-15M-SO ; HS-74A-30M-SO ; HS-74A-60M-SO ; HS-74A-150M-SO ; HS-74A-300M-SO ; HS-74A-500M-SO £ 125.00 Order

N HS-74A-300K-N ; HS-74A-600K-N ; HS-74A-1M5-N ; HS-74A-3M-N ; HS-74A-6M-N ; HS-74A-15M-N ; HS-74A-30M-N ; HS-74A-60M-N ; HS-74A-150M-N ; HS-74A-300M-N ; HS-74A-500M-N £ 129.00 Order
SMA HS-74A-300K-S ; HS-74A-600K-S ; HS-74A-1M5-S ; HS-74A-3M-S ; HS-74A-6M-S ; HS-74A-15M-S ; HS-74A-30M-S ; HS-74A-60M-S ; HS-74A-150M-S ; HS-74A-300M-S ; HS-74A-500M-S £ 132.00 Order


All models include:

Pre-filtered RF amplifier, user manual in CDROM format, power supply cable with EMI filter.

* Other connector options available, please ask.
