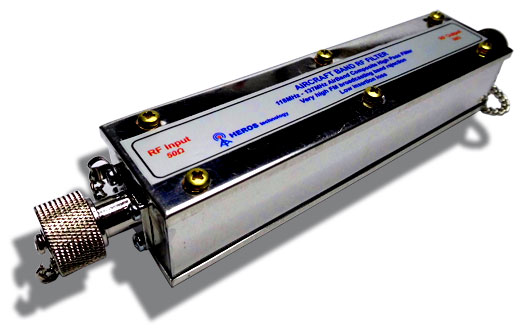

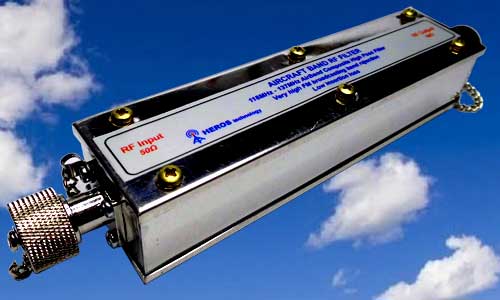

VHF AIRCRAFT BAND RF FILTER



118MHz - 137MHz Multipole Composite High Pass Filter

FM broadcasting band rejection: 100dB




  Filter plot

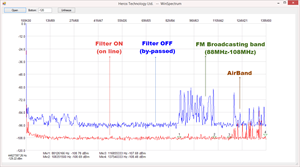

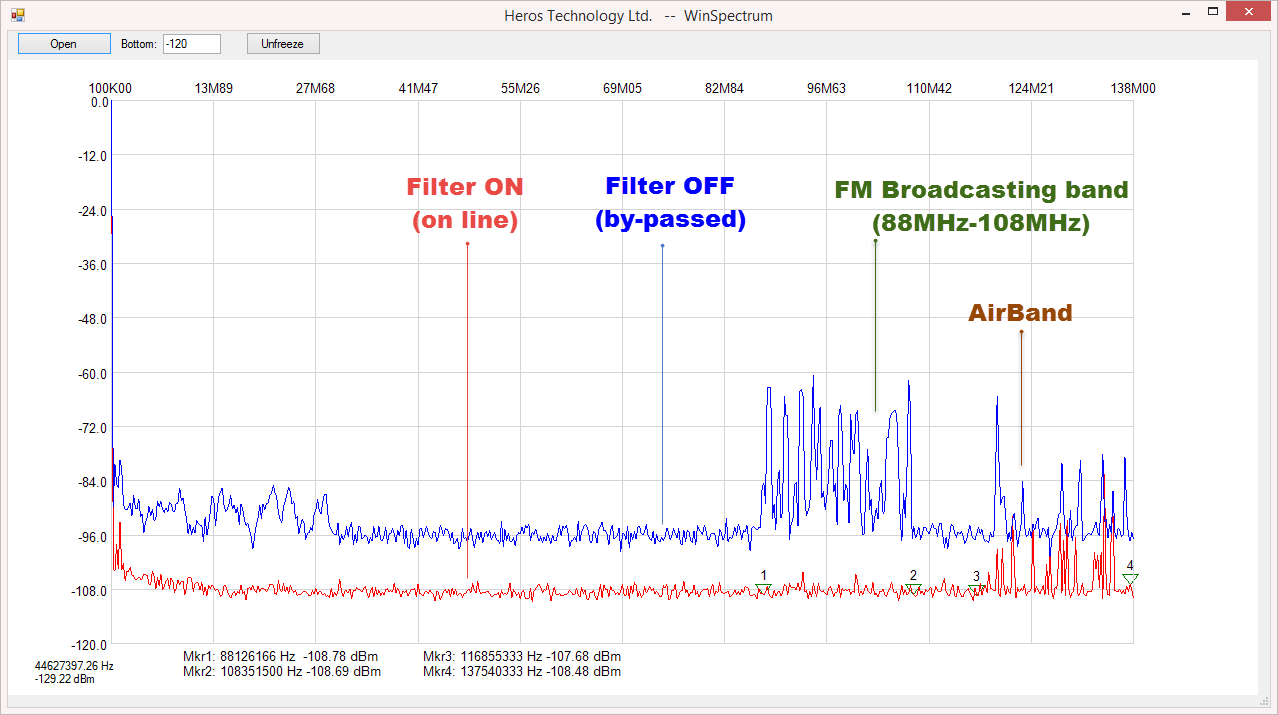

AirBand filter ON-OFF response plot.
(click on picture to enlarge)





Short Video Clip Demo showing attenuation outside Airband




  AirCraft Band RF Filter ; SKU: HS-118HPF £ 165.00 Order
  The set includes: AirBand filter filter and user manual in CDROM format.

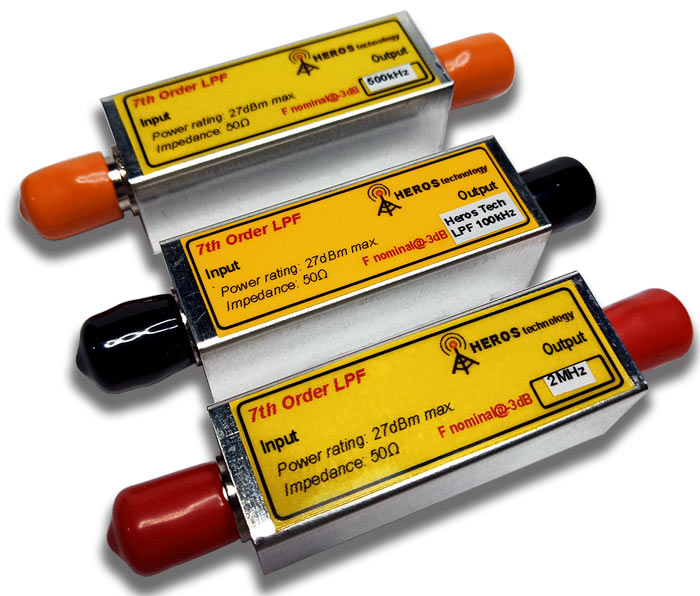

  Range of eleven Low Pass Filters from 300kHz to 500MHz.

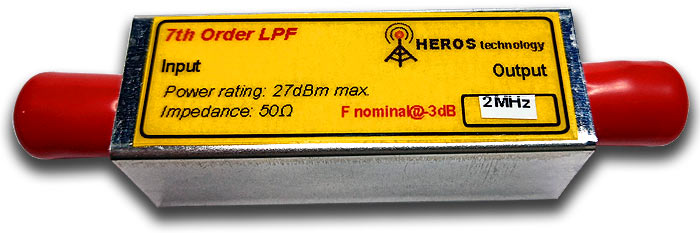

Range of eleven Low Pass Filter covering from 300kHz to 500MHz

Essential on measurement applications, suitable for Receivers , RF Generators, Local oscillators, RF amplifiers, RF mixers.

- Topology: Passive, 7th order, Elliptic
- Input/Output impedance: 50 Ohm.
- Insertion loss: < 0.3 dB
- Sharp roll-off, Stop band attenuation: see plots.
- Power rating: 27dBm
- Connectors: BNC or SMA available. Customize versions available. Please ask.
- Size: 56mmx20mmx20mm( 2.205x0.787x0.787in)



Range of frequencies: (3dB cut off frequency)

- 300kHz
- 600kHz
- 1.5MHz

- 3MHz
- 6MHz
- 15MHz

- 30MHz
- 60MHz
- 150MHz

- 300MHz
- 500MHz

Catalogue

Mini LPF filters catalogue




  Range of Low Pass Filters options.
*Connector
   option
Model Price Order

BNC HS-333F-300K-B ; HS-333F-600K-B ; HS-333F-1M5-B ; HS-333F-3M-B ; HS-333F-6M-B ; HS-333F-15M-B ; HS-333F-30M-B ; HS-333F60M-B ; HS-333F-150M-B ; HS-333F-300M-B ; HS-333F-500M-B £ 55.00 Order

SMA HS-333F-300K-S ; HS-333F-600K-S ; HS-333F-1M5-S ; HS-333F-3M-S ; HS-333F-6M-S ; HS-333F-15M-S ; HS-333F-30M-S ; HS-333F-60M-S ; HS-333F-150M-S ; HS-333F-300M-S ; HS-333F-500M-S £ 65.00 Order



All models include:
Mini Low Pass Filters., user manual in CDROM format.
* Other connector options available, please ask.

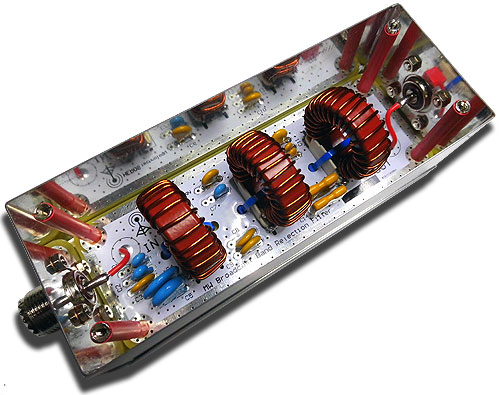

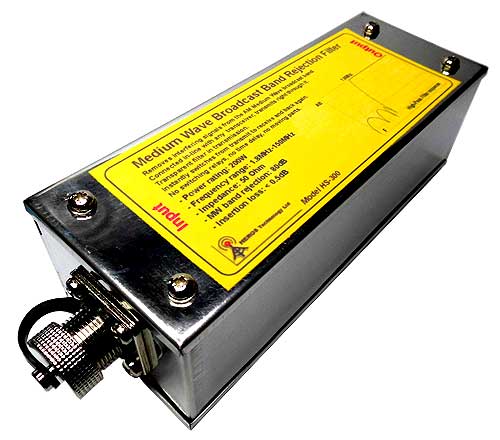

  MW Broadcast Band Rejection Filter. BCB filter. (No relays) 200 Watts power rating.




Features:

Attenuates signals from the MW broadcast band more than 80 dB.
Connected in-line with any 1.8 - 60 MHz HF transceiver, transmits right through it.
Instantly switches from transmit to receive and back again.

No switching relays, no moving parts. No relay time delays.
Compatible with the output of a typical class HF transceiver.

Also suitable to be inserted between a HF transceiver and an amplifier or a tuner.
Totally passive T/R (Transmit/Receive) operation.
Does not require connection to a power supply.

Specifications:

- Power rating: 200Watts
- Frequency range: 1.8MHz-60MHz
- Impedance: 50 Ohm.
- T130 size toroidal cores.
- 1% tolerance Silvered mica capacitors.
- Pass band loss: < 0.85dB (1.8MHz )
- Pass band Loss: < 0.25dB (3-60MHz)
- Max attenuation: > 80dB
- Return loss: > 20dB (1.8 MHz through 30 MHz)
- Connectors: SO-239 or "N" option
- Size: 148mmx55mmx50mm(5.827x2.165x1.969in)

Manual

MW Broadcast Band Rejection Filter
User manual.





Attenuates the spurious signals from AM broadcast band, well know enemies of SW receivers, that cause birdies and IMD, overloading and de-sensing receiver front-ends.
This filter allows to work all of 160 Meters, including the CW portion of the band without the interferences normally experienced by receivers due to overload from the strong commercial AM broadcast band signals
Very sharp slope occurring at 1.8MHz, keeps without attenuation all signals at 1.8MHz and above, including the CW portion of the 160 meters band.
Low pass band insertion loss, less than 1 dB typical on all pass band response.
No switching relays are needed.
Suitable for inserting between transceiver and antenna.


  MW Broadcast Band Rejection filter.BCB filter options
  MW Broadcast Band Rejection filter. Connector option: SO-239 ; SKU: HS-300SO £ 144.00 Order

  MW Broadcast Band Rejection filter. Connector option: N ; SKU: HS-300N £ 155.00 Order
  The set includes:
BCB filter and user manual in CDROM format.
